Moving up the Assemblyline: Exposing malicious code in browser extensions

Moving up the Assemblyline: Exposing malicious code in browser extensions

How to use the open source Assemblyline tool to track browser extension updates and detect malicious code

Tre Wilkins
Originally published . Last modified .

Browser extensions are ubiquitous, offering users enhanced functionality and customization. However, they also represent a significant, often overlooked, attack surface. The very nature of extensions—small code bundles with broad permissions and automatic updates—makes them an ideal vector for supply chain attacks. This risk is compounded by the sheer volume of extensions found in enterprise environments: while the median number of unique extensions installed across our customer base is 30, we’ve observed upwards of 3,000 in some environments.

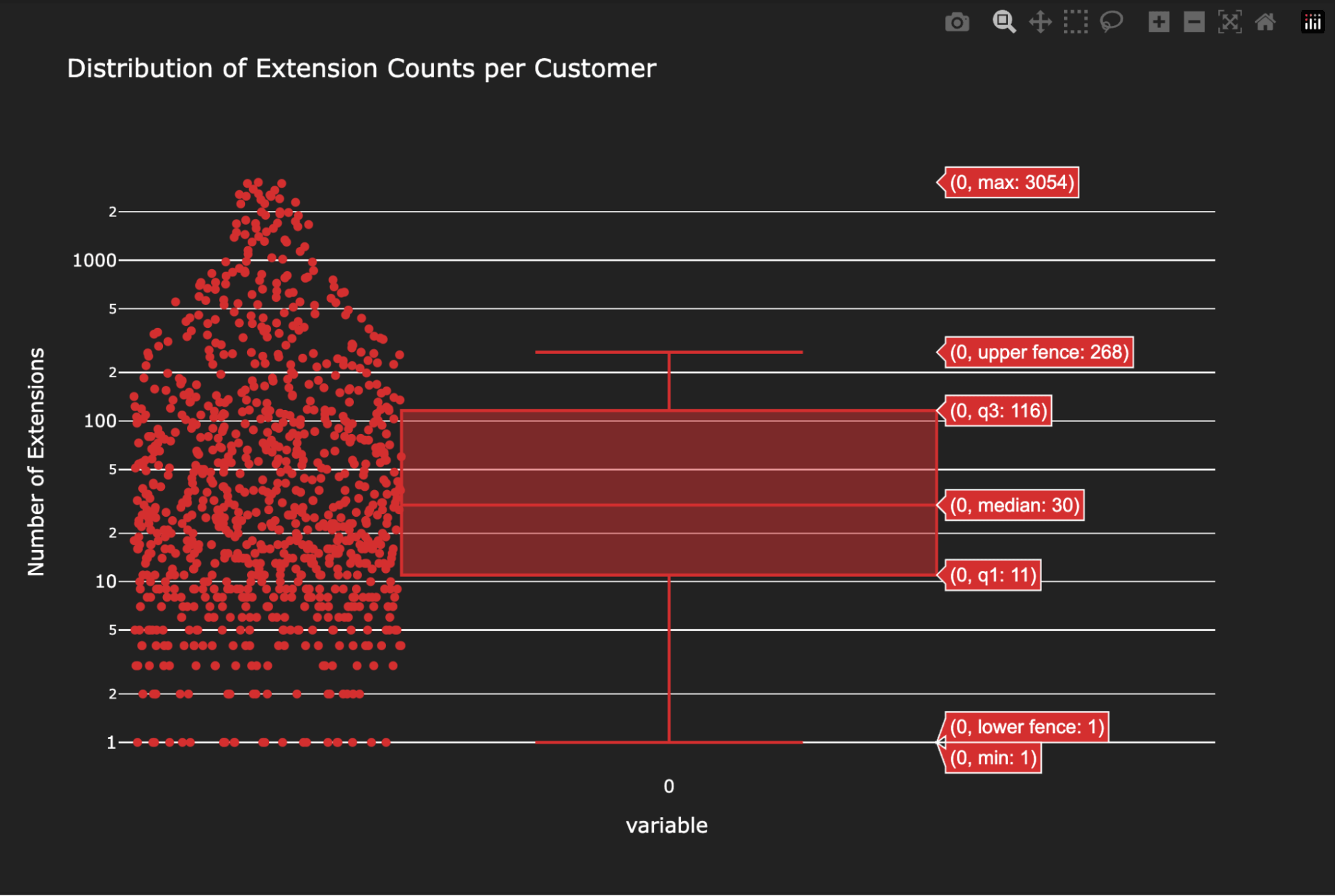

Graph showing distribution of browser extensions across Red Canary customers

High-profile browser extension compromises, such as the Trust Wallet and Cyberhaven incidents, underscore the urgent need for mitigation against browser extension supply chain attacks. However, mitigation can fail or might not be implemented organization-wide (e.g., if you leverage version pinning). Therefore, a robust strategy for assessing and detecting potentially risky or malicious extension updates within organizations is crucial.

While in-browser telemetry is the gold standard for deep runtime monitoring, this single data source can only detect malicious code after execution and not all security teams have access to it. Furthermore, solely relying on public reporting about malicious extension updates significantly increases dwell time in environments.

This blog details how to leverage Assemblyline, an open-source malware analysis framework, to proactively assess and detect potentially malicious extension updates in your environment. This isn’t just theoretical. Using a simple yet effective workflow, we’ve confirmed that this process would have successfully detected each of the five publicly reported malicious extension updates that we used for our assessment, validating its real-world effectiveness.

The workflow

Since this blog post focuses on assessing extension updates, the core workflow is as follows:

  1. Detection and submission: When a new version of an extension is detected in your environment, submit both the old and new extension packages to Assemblyline for static analysis.
  2. Analysis and comparison: Once the Assemblyline reports are generated, compare the significant differences between the two versions. This comparison is critical for identifying suspicious changes, such as:
    • New or updated service workers or scripts
    • Statistical deviations from the norm (e.g., increased script entropy)
    • Newly requested permissions
    • New network domains (extracted by Assemblyline)
    • New Assemblyline service detections/signatures present in the new version but absent in the old
  3. Alerting: Alerts are raised when predefined detection criteria are met. The next section details a few of the rules we created and their associated “noise” levels.

The results

Over a set of 2,850 total extension version comparisons, we used the above workflow and created five rules to generate alerts. These alerts showed a high concentration of signals tied to suspicious behavior. To validate the efficacy of these detection rules, we backtested them against known real-world compromises, specifically those involving the following extensions:



Crucially, the most effective and lowest-noise detection rule—which looked for new domains being referenced in the extension, new Assemblyline signatures, an updated service worker, and an added or updated content script—successfully identified four of the five real-world compromises (NEW-DOMAIN-NEW-ASSEMBLY-LINE-SERVICE-DETECTIONS-UPDATED-BACKGROUND-SCRIPT-AND-UPDATED-OR-ADDED-CONTENT-SCRIPT).

Specifically, the difference between the previously non-malicious and the newly malicious versions was strongly indicated by three Assemblyline default services: the JsJaws service, the URLCreator service, and the FrankenStrings service. The signatures raised included:



However, the malicious update for the “Color picker tool – geco” was only caught by a broader, less specific detection rule that looks for a new domain being referenced in the extension and a new or updated service worker (NEW-DOMAIN-NEW-OR-UPDATED-BACKGROUND-SCRIPT). Importantly, this rule did raise on all five backtested real-world compromises. Therefore, depending on your organization’s tolerance for detection volume, you might choose to implement rules that are either more or less “noisy.” That said, we tested this across multiple customer environments and found the volume to be consistently low; therefore, for most organizations, the level of “noise” should remain low.



Detection focusRule namePercentage  Examples
Detect extensions that have an updated
service worker and a content script has been updated
or added, which may indicate significant changes in extension functionality and
potential introduction of malicious behavior
UPDATED-BACKGROUND-SCRIPT-AND-
UPDATED-OR-ADDED-CONTENT-SCRIPT
~40%Cyberhaven security extension V3

QuickLens – Search Screen with Google Lens

PaperPanda — Get millions of research papers

Trust Wallet

Detect extensions that reference new domains and
have a new or updated service worker, which may
indicate the introduction of a C2 domain and
a potential persistence mechanism
NEW-DOMAIN-NEW-OR-
UPDATED-BACKGROUND-SCRIPT
~35%Color picker tool – geco

Cyberhaven security extension V3

QuickLens – Search Screen with Google Lens

PaperPanda — Get millions of research papers

Trust Wallet

Detect extensions that reference new domains,
have an updated service worker, and a content
script has been updated or added, which may
indicate significant changes in extension
functionality and potential introduction of
malicious behavior
NEW-DOMAIN-UPDATED-BACKGROUND-SCRIPT
-AND-UPDATED-OR-ADDED-CONTENT-SCRIPT
~24%Cyberhaven security extension V3

QuickLens – Search Screen with Google Lens

PaperPanda — Get millions of research papers

Trust Wallet

Detect extensions with script updates showing
anomalous characteristics, which may signal
significant changes in functionality or code
style, and could indicate takeover by a
malicious actor using z-score and
entropy anomalous characteristics
SCRIPT-UPDATES-WITH-
ANOMALOUS-CHARACTERISTICS
~11%Cyberhaven security extension V3
Detect extensions that reference new domains,
have new assembly line service detections,
have an updated service worker, and a content
script has been updated or added, which may
indicate significant changes in extension
functionality and potential introduction of malicious behavior
NEW-DOMAIN-NEW-ASSEMBLY-LINE-
SERVICE-DETECTIONS-UPDATED-
BACKGROUND-SCRIPT-AND-UPDATED
-OR-ADDED-CONTENT-SCRIPT
~9%Cyberhaven security extension V3

QuickLens – Search Screen with Google Lens

PaperPanda — Get millions of research papers

Trust Wallet

Cyberhaven case study

Using the Cyberhaven incident as an example—which triggered all five of our custom detectors noted in the above section—we will now walk through the workflow. We submitted both the maliciously updated version (24.10.4) and the prior legitimate version (24.10.2) of the Cyberhaven extension from the late 2024 supply chain attack to Assemblyline.

For transparency, and to simulate a pre-disclosure analysis, we intentionally disabled Assemblyline services that incorporate threat intelligence feeds. This is because these services would now flag the malicious 24.10.4 version based on the known malicious C2 domain (cyberhavenext[.]pro). Our objective, however, is to assess extension updates for potentially malicious additions before they are publicly known to be malicious.

Therefore, we created a custom submission profile. This profile included the following services, with all others disabled except for the necessary Extract service:



Note: The Extract service is crucial, as it ensures the extension archive is unpacked and its embedded files are then subjected to the static analysis services listed above. This approach saves time by allowing us to submit the extension once rather than submitting each file individually.

import os

# https://cybercentrecanada.github.io/assemblyline4_docs/integration/python/

from assemblyline_client import get_client  # pip install assemblyline_client

# Set up the Assemblyline client.

al_client = get_client(

f"https://{os.getenv('ASSEMBLYLINE_HOST')}",

apikey=(os.getenv("ASSEMBLYLINE_USERNAME"), os.getenv("ASSEMBLYLINE_API_KEY")),

verify=False,

)

files = [

"pajkjnmeojmbapicmbpliphjmcekeaac_24.10.2.zip",

"pajkjnmeojmbapicmbpliphjmcekeaac_24.10.4.zip",

]

# Submit files to Assemblyline. Store the submission information by file name in a dictionary.

submissions: dict[str, dict] = {

file: al_client.submit(

params={

"description": os.path.basename(file),

"services": {

"selected": [

"Extract",

"Characterize",

"DeobfuScripter",

"FrankenStrings",

"JsJaws",

"Pixaxe",

"URLCreator",

],

},

},

path=file,

)

for file in files

}

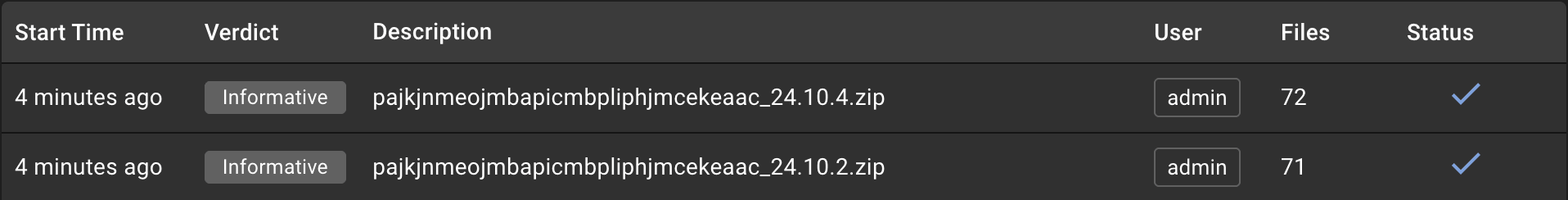

Assemblyline report for malicious Cyberhaven browser extension

Assemblyline’s reports won’t always definitively classify a submitted file as malicious. Therefore, additional interpretation is necessary. To detect potentially malicious changes in an updated extension, we employed a multi-layered comparative analysis focusing on key indicators and report differences.

Signature and domain comparison

After submitting both the old and new extension versions to Assemblyline for analysis we then compared the resulting reports, specifically focusing on extracted domains and detection signatures. This comparison makes it simple to spot any newly added or modified service signatures or domains, which is a strong initial sign of potential suspicious resource access or activity.

Identifying script modifications

When a background or content script is added to an extension, the manifest.json is updated. For example, adding the content.js script in version 24.10.4 is easily identified by taking a diff of the manifest files. However, when an existing script is updated, the manifest doesn’t change. In this scenario, we relied on the file’s hash to assess any modification. Fortunately, Assemblyline’s extract service calculates and provides the hash of each file in the file_tree key of the returned report. This feature allowed us to easily see that a preexisting service worker, like worker.js, was updated.

Statistical anomaly detection

Merely flagging the presence of a new or modified script generates excessive noise. To cut through this, we integrated a statistical anomaly analysis to determine if a change is a significant deviation from the established norm. Consider the new content.js script introduced in version 24.10.4. By analyzing the legitimate previous version (24.10.2), we established a normal entropy range for content scripts (3.82–4.84, with a mean/median around 4.79/4.82). The new content.js, however, exhibited an entropy of 4.98 and, more damningly, a modified z-score of 75.4. This extreme statistical outlier strongly indicates a radical deviation in coding style, suggesting authorship by an outside or unfamiliar entity.

Furthermore, an update to a preexisting script, such as the service worker, can also be detected: its updated entropy (5.2) showed a significant 12.7 percent increase over the previous version’s (4.6) in 24.10.2—a clear sign of deviation from the normal writing style. Assemblyline’s characterize service automatically calculates the entropy for every submitted file, which can be retrieved directly via the file API endpoint.

The final assessment/alert below is the result of comparing the two versions. It is specifically designed to take a seemingly harmless event—a browser extension update—and provide critical insights into what changed. This alert can be read as such:

The update to the “Cyberhaven security extension V3” (extension_id: pajkjnmeojmbapicmbpliphjmcekeaac), from version 24.10.2 to 24.10.4, triggered significant security alerts due to highly suspicious changes. The new version introduced a content script, js/content.js, exhibiting an extremely high entropy z-score (75.38), strongly suggesting obfuscation or high compression. Additionally, the service worker’s (js/worker.js) entropy increased anomalously by 12.27 percent. The update further raises red flags by adding a reference to a new domain, cyberhavenext[.]pro, and containing two new suspicious signatures: Base64Decoding and CookieHarvesting (JSJAWS.3). These combined indicators point toward a potential risk of data exfiltration.

{

"extension_id": "pajkjnmeojmbapicmbpliphjmcekeaac",

"version": "24.10.4",

"old_version": "24.10.2",

"extension_name": "Cyberhaven security extension V3",

"matched_rules": [

"NEW-DOMAIN-UPDATED-BACKGROUND-SCRIPT-AND-UPDATED-OR-ADDED-CONTENT-SCRIPT",

"NEW-DOMAIN-NEW-ASSEMBLY-LINE-SERVICE-DETECTIONS-UPDATED-BACKGROUND-SCRIPT-AND-UPDATED-OR-ADDED-CONTENT-SCRIPT",

"UPDATED-BACKGROUND-SCRIPT-AND-UPDATED-OR-ADDED-CONTENT-SCRIPT",

"SCRIPT-UPDATES-WITH-ANOMALOUS-CHARACTERISTICS",

"NEW-DOMAIN-NEW-OR-UPDATED-BACKGROUND-SCRIPT"

],

"new_content_script_anomalous_characteristics": true,

"new_content_scripts": [

"js/content.js"

],

"new_domains": [

"cyberhavenext[.]pro"

],

"new_script_anomalous_characteristics": false,

"new_service_worker_anomalous_characteristics": false,

"new_signatures": {

"JSJAWS.3": [

"Signature: Base64Decoding",

"Signature: CookieHarvesting"

]

},

"notes": [

"New content script added: js/content.js. Entropy: 4.98 (Medium). The z-score for the new content script's entropy is 75.38, which indicates a significant deviation from previous content scripts.",

"Service worker (js/worker.js) updated. Entropy: 5.17 (Medium). This is 12.27% higher than the previous version of the service worker: 4.60 (Medium).",

"1 new domain(s) referenced",

"2 new signature(s) detected."

],

"updated_service_worker": "js/worker.js",

"updated_service_worker_anomalous_characteristics": true

}

Closing thoughts

The key takeaway is this: High-fidelity detection of potentially malicious browser extension updates is a practical reality. Security teams can build a robust, automated assessment workflow to aid in early detection of risky or malicious version updates before public reporting. This is achieved by combining continuous monitoring with a powerful static analysis sandbox. While this can serve as a complementary detection layer for more advanced programs or those with access to extensive telemetry, it is useful for all organizations regardless of maturity level. This is especially vital for those concerned about supply chain attacks who have not yet implemented version pinning, established an extension review process of their own, or offloaded that work to an external team.
